PAINT SHOP ( PT_CED LINE LAYOUT)

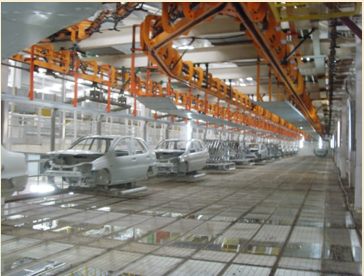

"Overhead Electric Monorail System FORD Body Shop Under Body"
General Specification
1. Machine Cycle Time : Max65sec
2. Conveyor Type : Electric Monorail System
Front and Rear Floor transfer Line is composed
two(2) line, and two Telescopic Lift,a Drop Lift and
two Repair Line
3. Carrier
2-1. EMS Carrier Arm Openning Type
2-2. EMS Carrier is composed one(1) Drive Trolley,
one(1) Middle Trolley and two(2) Idle Trolley
2-3. No. of EMS Carrier : Front Floor Carrier : 5sets.
Rr Floor Carrier : 7sets
Hypoid Geared Motor of EMS Drive Unit : 0.2kw,
4P,220V,50HZ
2-4. Speed of EMS Carrier : Max. 60m/min by Inverter
Controller
PAINT SHOP ( CED LINE )
" Overhead Power & Free (H-Hanger) TATA PBS "
PAINT SHOP ( CED LINE )
" Overhead Power & Free (H-Hanger) TATA PBS "
TATA MOTORS ( PBS )
" Installtion of Overhead Power & Free PBS (H-Hanger) with super structure fabrication erection and painting "
TATA MOTORS ( PBS )

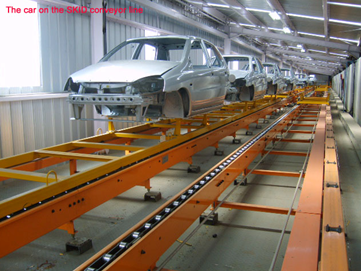

" Skid Roller Conveyor TATA 250 UPD (from Paint Shop to New TCF) with structure fabrication and ercetion "
